CONDUX  |  SKU: 30054313  |  MPN: 08581212

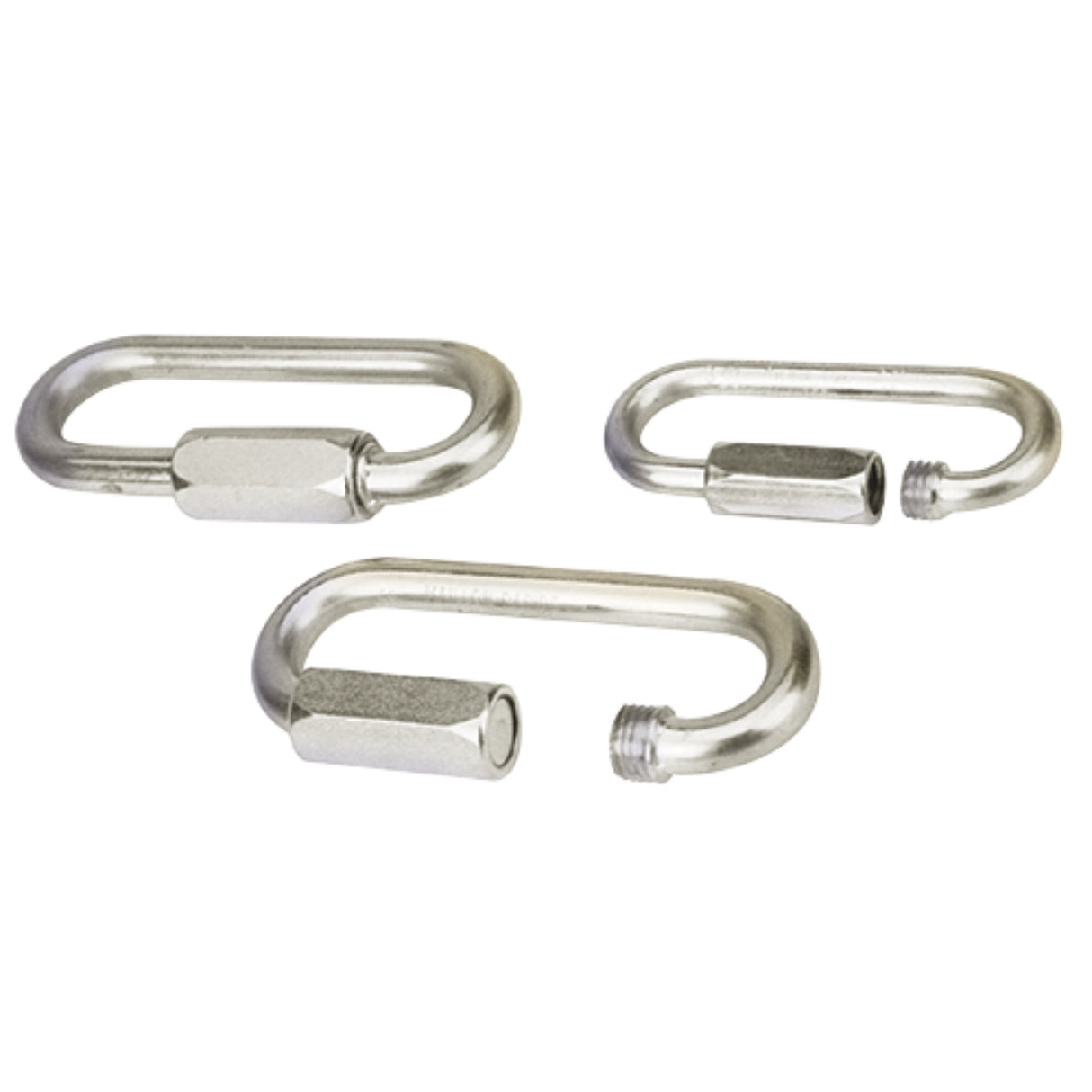

Condux Threaded Chain Connectors | For Pulling Eyes, Winch Lines & Harnesses | 1/8″–1/2″ Sizes

$10.25
Each (min order qty 10)
Size | Load Limit
  • Quick Attachment: Connect pulling eyes or swivels to winch lines and harnesses in seconds using a threaded nut design.
  • Reusable & Efficient: Built for repeated use, providing excellent value and long-term performance.
  • High Strength: Constructed from heavy-duty metal to endure tension and impact during cable pulling.
  • Wide Range: Available in 1/8″–1/2″ sizes with working loads up to 2,755 lbs for versatile jobsite compatibility.
📄 Download Spec Sheet

Condux Threaded Chain Connectors | For Pulling Eyes, Winch Lines & Harnesses | 1/8″–1/2″ Sizes — Product Overview

Condux Threaded Chain Connectors provide a quick and efficient way to attach pulling eyes or swivels to winch lines, harnesses, or ropes. Designed for both cable stringing and pulling, these connectors feature an easy screw-on mechanism that secures components in seconds. Built from high-strength metal, they’re durable, reusable, and ideal for long-term use in demanding environments.

Key Features

  • Quick Connection – Securely attach pulling eyes or swivels to winch lines, harnesses, or ropes using a threaded nut design.
  • Reusable Design – Built for multiple uses, delivering long-term value and reduced consumable costs.
  • Heavy-Duty Durability – Made from high-strength metal to withstand high-tension pulling operations.
  • Wide Load Range – Available in sizes from 1/8″ to 1/2″, supporting working load limits up to 2,755 lbs.

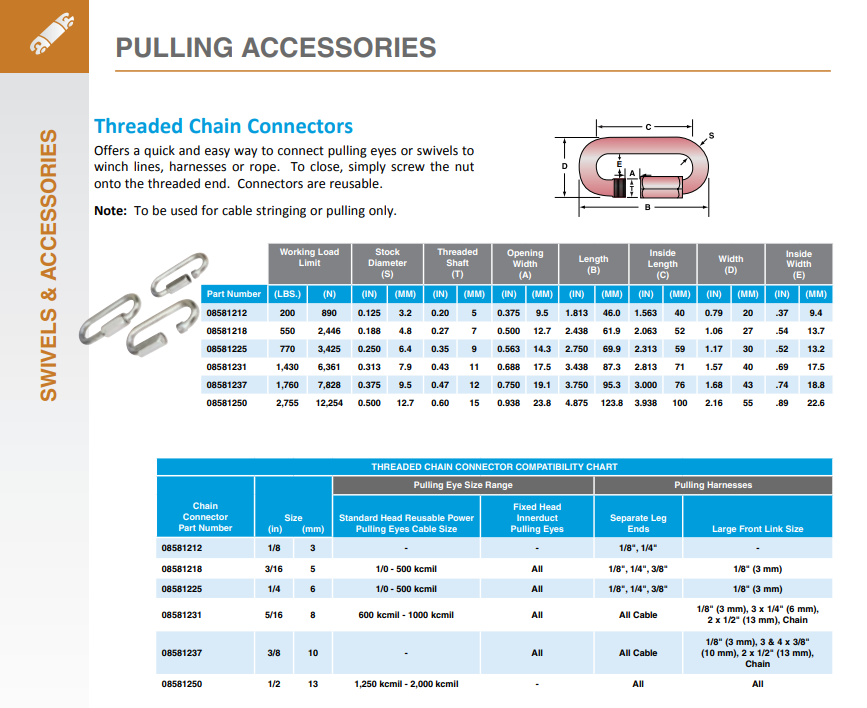

Technical Specifications

Part Number Working Load Limit (lbs) Stock Diameter (in) Threaded Shaft (in) Opening Width (in) Length (in) Inside Length (in) Width (in) Inside Width (in)
08581212 200 0.125 0.20 0.38 1.81 1.56 0.79 0.37
08581218 550 0.188 0.27 0.50 2.44 2.06 1.06 0.54
08581225 770 0.25 0.35 0.56 2.75 2.31 1.17 0.52
08581231 1,430 0.313 0.43 0.69 3.44 2.81 1.57 0.69
08581237 1,760 0.375 0.47 0.75 3.75 3.00 1.68 0.74
08581250 2,755 0.50 0.60 0.94 4.88 3.94 2.16 0.89

Compatibility Information

Part Number Size (in) Reusable Power Pulling Eye Range (kcmil) Fixed Head Pulling Eye Range Pulling Harness Leg Ends Large Front Link Compatibility
08581212 1/8 – – 1/8″, 1/4″ –
08581218 3/16 1/0–500 All 1/8″, 1/4″, 3/8″ 1/8″ (3 mm)
08581225 1/4 1/0–500 All 1/8″, 1/4″, 3/8″ 1/8″ (3 mm)
08581231 5/16 600–1000 All All 1/8″ (3 mm), 3 × 1/4″ (6 mm), 2 × 1/2″ (13 mm), Chain
08581237 3/8 – All All 1/8″ (3 mm), 3–4 × 3/8″ (10 mm), 2 × 1/2″ (13 mm), Chain
08581250 1/2 1250–2000 – All All
